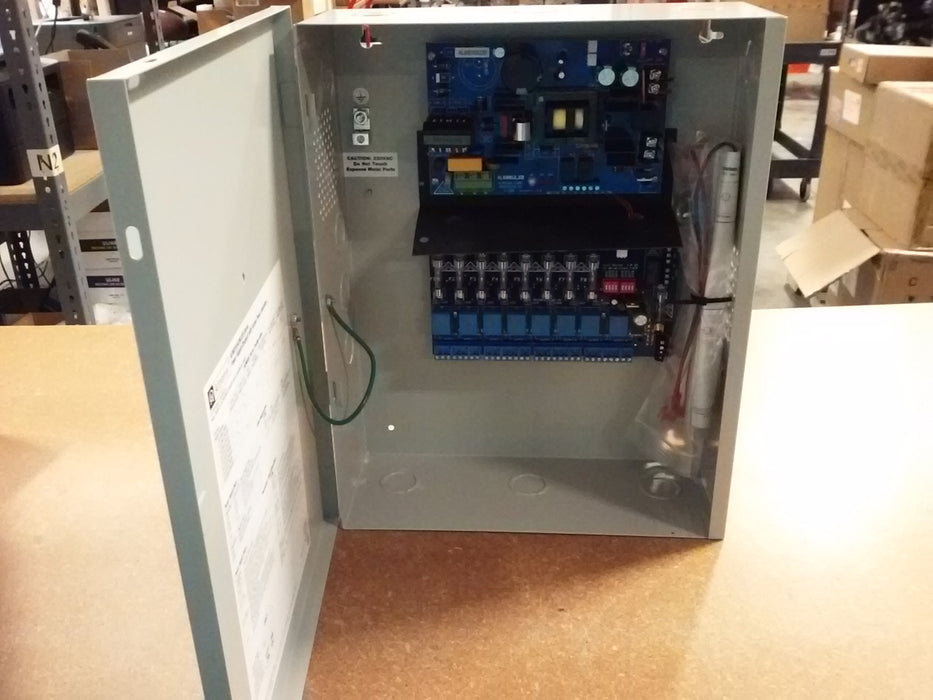

Altronix Power Supply Charger with Eight Independent 12VDC or 24VDC Fail Safe and/or Fail Secure Outputs (AL600ACM220)

Altronix Power Supply Charger with Eight Independent 12VDC or 24VDC Fail Safe and/or Fail Secure Outputs (AL600ACM220)

by Altronix
$400.00
SKU GS-UU-3575A

Great condition, Unused, has accessories.

  • Nominal 220VAC (range 198VAC - 256VAC) 50/60Hz rated @ 1.2A.
  • Power supply input options:
    • a) One (1) common power input for ACM8 and lock power (factory installed).
    • b) Two (2) isolated power inputs - One (1) to power the ACM8 and one (1) for lock accessory power, (external power supply is required). (Current is determined by the power supply connected, not to exceed a maximum of 10A total).
  • Eight (8) Access Control System trigger inputs.
  • Input options:
    • a) Eight (8) normally open (NO) inputs.
    • b) Eight (8) open collector inputs.
    • c) Any combination of the above.
  • 12VDC or 24VDC @ 6A supply current.
  • Eight (8) independently controlled outputs.
  • Output options:
    • a) Eight (8) Fail-Safe and/or Fail-Secure power outputs.
    • b) Eight (8) form “C” 5A rated relay outputs.
    • c) Any combination of the above.
  • Eight (8) auxiliary power outputs (unswitched).
  • Fuses are rated @ 3.5A.
  • Filtered and electronically regulated outputs (built-in power supply).
  • Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
  • Fire Alarm disconnect input options:
    • a) Normally open (NO) or normally closed (NC) dry contact input.
    • b) Polarity reversal input from FACP signaling circuit.
  • Alarm output relay indicates that FACP input is triggered (form “C” contact rated @ 1A 28VDC).
  • Short circuit and thermal overload protection.
  • AC fail supervision (form “C” contact).
  • Red LEDs indicate outputs are triggered (relays energized).
  • Green LED indicates FACP disconnect is triggered.
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.
  • Zero voltage drop when unit switches over to battery backup (AC failure condition).
  • Battery fail and battery presence supervision (form “C” contact).
  • Operating Temperature: 0ºC to 49ºC (32ºF to 120ºF).
  • Storage Temperature: - 20ºC to 70ºC ( - 4ºF to 158ºF).
  • Relative Humidity: 85% +/- 5%.
